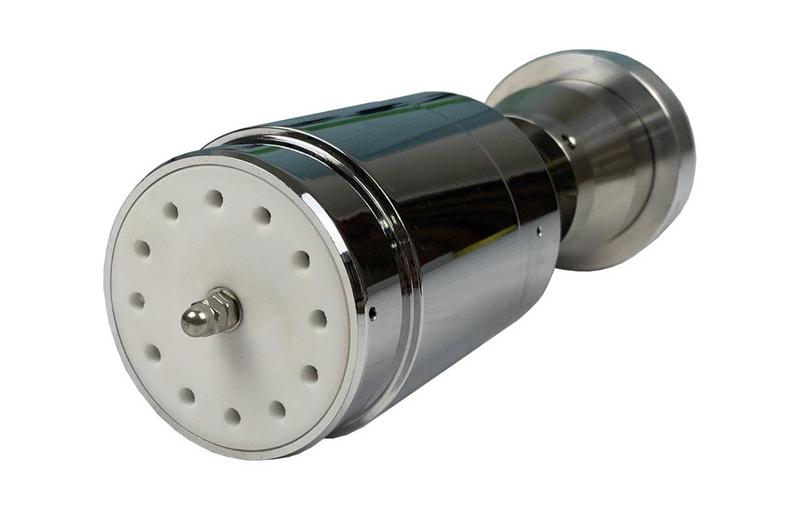

Premium 20KHz Ultrasonic Transducer for Branson 902

In the rapidly evolving world of industrial manufacturing and precision fabrication, the demand for innovative solutions that can deliver both efficiency and reliability has never been greater. At Hanstyle, we understand the critical role that ultrasonic technology plays in meeting this demand. That's why we are proud to introduce our flagship product: the High-Quality 20KHz Ultrasonic Welding Transducer with Booster, engineered as a superior replacement for Branson 902 units. Ultrasonic transducers are at the heart of ultrasonic welding, cleaning, and cutting systems. They convert electrical energy into mechanical vibrations - ultrasonic waves above the audible range of human hearing, typically 20kHz or higher. These vibrations, when applied to materials or objects, facilitate a variety of processes from welding thermoplastics and metals to precision cleaning. Our 20KHz ultrasonic transducer is designed to offer unmatched efficiency and reliability in these applications. By focusing on the 20kHz frequency, the device ensures a balance between penetration depth and power, making it highly versatile for diverse industrial uses. The High-Quality 20KHz Ultrasonic Welding Transducer with Booster stands out for several reasons. Firstly, its compatibility with Branson 902 systems ensures that it can seamlessly integrate into existing setups, providing an instant performance upgrade without the need for extensive system overhauls. Moreover, it features advanced design improvements over standard models, including superior materials for enhanced durability and a meticulously engineered booster to amplify the ultrasonic signals without compromising quality or efficiency. This means that businesses can achieve faster welding times, better precision in cleaning applications, and extended equipment lifespan, all while maintaining energy efficiency.

Introduction:

---

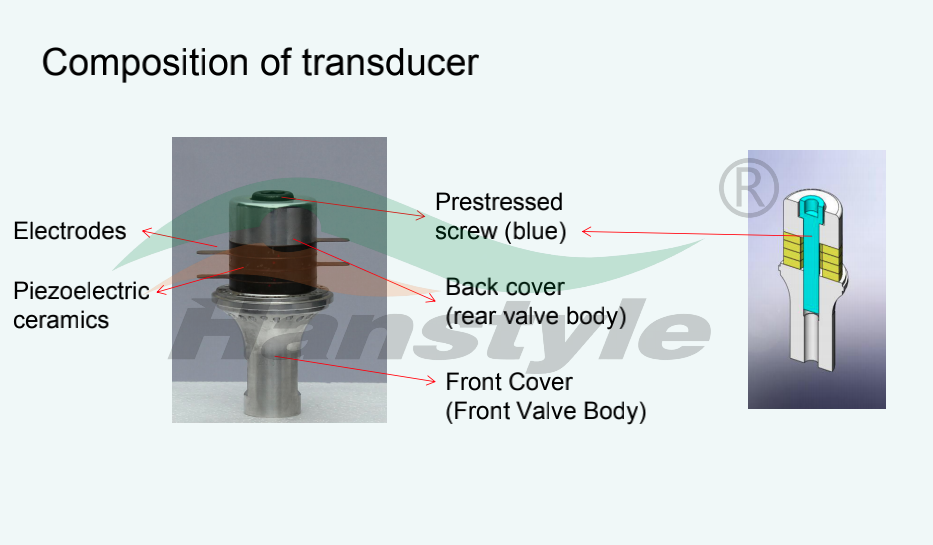

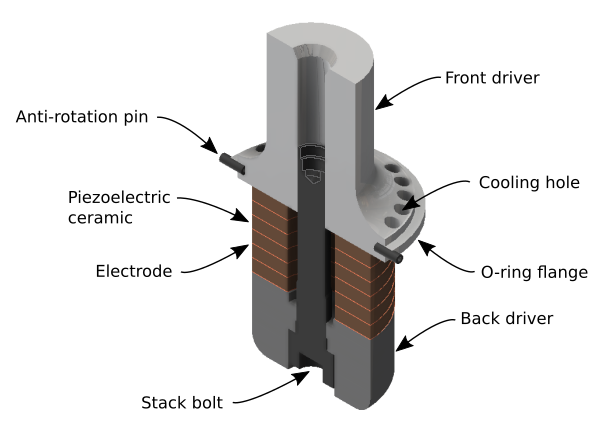

Ultrasonic transducers and ultrasonic horns are devices that generate or transmit ultrasonic energy. When the transducer is used as a transmitter, the electrical oscillating signal sent from the excitation source will cause the electric or magnetic field in the electrical energy storage element of the transducer to change, thereby changing the mechanical vibration system of the transducer by some effect. The driving force of vibration is generated, thereby driving the medium in contact with the mechanical vibration system of the transducer to vibrate and radiating sound waves into the medium.   High-quality transducers have a stable frequency and stable output amplitude for a long time. The quality of the piezoelectric ceramic sheet directly determines the quality of the transducer. All of our transducers use high-quality piezoelectric ceramics, and most of the replacement transducers use piezoelectric ceramics imported from Germany. Hanspire Automation, with exquisite service and quality assurance, is your good partner on the road to success!

Application:

---

Branson 902 Replacement is suitable for Branson® Ultrasonic Welder model 910IW and 910IW+ etc 900 series machines. The Replacement Converter for Branson CJ20 , CR20 , 922JA , 902JA , 502. Direct replacement for the 20KHz Branson welding machine.

Demonstration Of The Working Performance:

---

Specifications:

---

Item NO.	Frequency (KHz)	Ceramic diameter （mm)	Qty of ceramic	Connect screw	Impedance	Capacitance（pF)	Input Power (W)
Branson CJ20  Replacement	20KHz	50	6	1/2-20UNF	10	20000pF	3300
Branson 502  Replacement	20KHz	50	6	1/2-20UNF	10	20000pF	3300～4400
Branson 402  Replacement	20KHz	50	4	1/2-20UNF	10	4200pF	800
Branson 4TH  Replacement	40KHz	25	4	M8*1.25	10	4200pF	800
Branson 902  Replacement	20KHz	40	4	1/2-20UNF	10	8000pF	1100
Branson 922J  Replacement	20KHz	50	6	1/2-20UNF	10	20000pF	2200～3300
Branson 803  Replacement	20KHz	50	4	1/2-20UNF	10	11000pF	1500
Dukane 41S30  Replacement	20KHz	50	4	1/2-20UNF	10	11000pF	2000
Dukane 41C30  Replacement	20KHz	50	4	1/2-20UNF	10	11000pF	2000
Dukane 110-3122  Replacement	20KHz	50	4	1/2-20UNF	10	11000pF	2000
Dukane 110-3168  Replacement	20KHz	45	2	1/2-20UNF	10	4000pF	800
Rinco 35K  Replacement	35KHz	25	2	M8*1.25	50	2000pF	900
Rinco 20K  Replacement	20KHz	50	2	M16*2	50	5000pF	1500～2000～3000
Telsonic 35K  Replacement	35KHz	25	4	M8*1.25	5	4000pF	1200
Telsonic 20K  Replacement	20KHz	50	4	1/2-20UNF	3	10000pF	2500

Advantage:

---

1. 1. Both Titanium alloy material and Aluminum material housing are optional. 2. Every single transducer would be aged before shipping out. 3. Low-cost, high-efficiency figure of merit helps to effectively improve work efficiency. 4. The output is stable, the welding strength is high, and the bonding is firm. Easy to reach automatic production 5. Same quality, half the price, double the value. Every product would be contniuously tested for 72 hours before post to our clients.

2. Comments From Clients：

3. ---

Payment & Shipping:

---

Minimum Order Quantity	Price（USD）	Packaging Details	Supply Ability	Delivery Port
1 Piece	580~1000	normal export packaging	50000pcs	Shanghai



But our commitment to quality goes beyond the product itself. At Hanstyle, we believe in supporting our customers every step of the way. From the initial consultation to after-sales support, our team of experts is dedicated to ensuring that you get the most out of your ultrasonic technology investment. Whether it's selecting the right model for your specific application or troubleshooting any challenges that arise, we're here to provide tailored solutions that meet your unique needs. In conclusion, the High-Quality 20KHz Ultrasonic Welding Transducer with Booster represents a significant leap forward in ultrasonic technology applications. Whether you're looking to enhance your manufacturing process, improve your cleaning efficiency, or explore new applications for ultrasonic energy, this product offers the performance, reliability, and support to make it possible. Discover the difference that true quality can make with Hanstyle's latest innovation in ultrasonic technology.
