High Stability 20KHz Industrial Ultrasonic Homogenizer For Medical Herbs Extraction And Make-up Emulsification

Short Description:

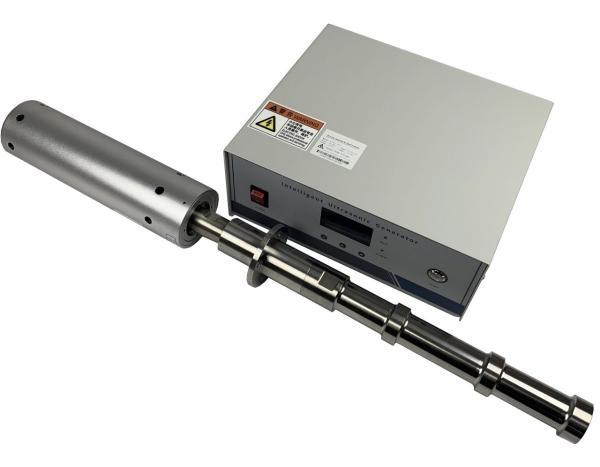

Ultrasonic homogenizer device is mainly composed of two parts, an ultrasonic drive generator and an ultrasonic vibrator equipment

(ultrasonic transducer with booster and probe),

  which are connected by a dedicated cable.


  • Model: H-UH20-1000/2000/3000
  • Frequency: 20KHz
  • Power: 1000VA/2000VA/3000VA
  • Generator: Digital Type
  • Horn Material: Titanium Alloy
  • Brand: Hanstyle

Product Detail

Product Tags

Introduction:

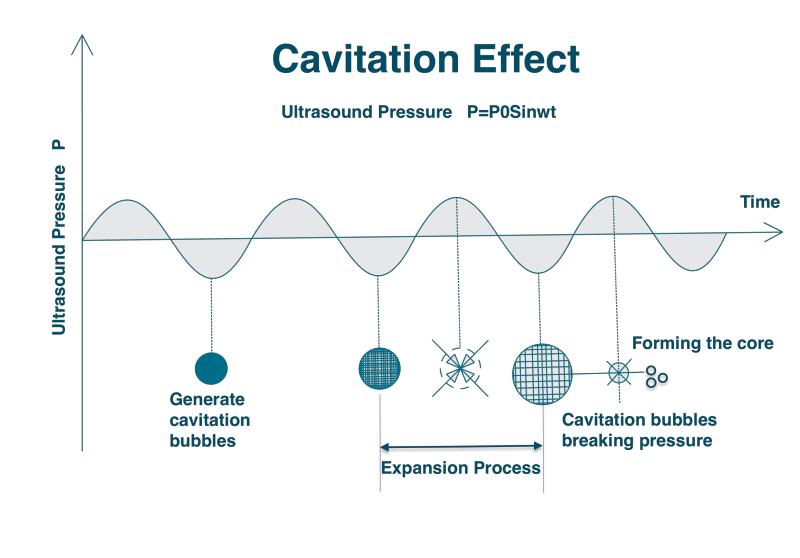

Ultrasonic homogenizer works through ultrasonic cavitation. The "cavitation" effect of ultrasonic wave in liquid forms local high temperature, high pressure or strong shock wave and micro jet, which propagates in the form of standing wave in the suspended body, causing the particles to be periodically stretched and compressed. The combination of these actions leads to the destruction of the agglomerate structure in the system, the enlargement of the particle gap and the formation of separate particles.



Ultrasonic extraction is the preferred technique to isolate bioactive compounds from botanicals. Sonication achieves a complete extraction and thereby superior extract yields are obtained in a very short extraction time. Being such an efficient extraction method, ultrasonic extraction is cost- and time-saving, whilst resulting in high-quality extracts, which are used for food, supplements and pharmaceuticals.

Application:


1.Food processing. Ultrasonic crystallization can modify the quality of food and improve its quality. Ultrasonic extraction can greatly improve the yield, quality, and filtration speed of juices such as fruits and vegetables; Ultrasonic drying has great potential for the application of heat sensitive foods, as it can improve the removal rate and drying speed of moisture, and the dried materials will not be damaged or blown away.

2.Ultrasound pharmaceuticals. Due to its ability to transmit energy, can disperse and crush small particles under the action of ultrasound. Therefore, it is also widely used in the pharmaceutical field, especially in the dispersion and preparation of drug components.

3.Chinese Herbs Extraction. Using ultrasound to disperse and destroy plant tissues, accelerating the penetration of solvents through tissues, and improving the extraction rate of effective components of Chinese herbal medicine. For example, it takes more than 5 hours to extract all alkaloids from the bark of cinchona bark using general methods, and only half an hour to complete ultrasonic dispersion.

4.Plant essential oil extraction. The ultrasonic oil extraction plant extraction equipment is mainly suitable for the extraction of essential oils from plant raw materials such as natural fragrances, flowers, roots, branches, and leaves. For example, the extraction of osmanthus, roses, jasmine, iris, agarwood, etc.

5.Polyphenols. Ultrasound treatment can improve the bioavailability of polyphenols in camu camu fruit honey.


Demonstration Of The Working Performance:


Specifications:


Model

H-UH20-1000S

H-UH20-1000

H-UH20-2000

H-UH20-3000

H-UH20-3000Z

Frequency

20KHz

20KHz

20KHz

20KHz

20KHz

Power

1000 W

1000 W

2000W

3000W

3000 W

Voltage

220V

220V

220V

220V

220V

Pressure

Normal

Normal

35 MPa

35 MPa

35 MPa

Intensity of sound

>10 W/cm²

>10 W/cm²

>40 W/cm²

>60 W/cm²

>60 W/cm²

Material of probe

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy

Generator

Digital type

Digital type

Digital type

Digital type

Digital type

Advantage:


    1. Titanium alloy material ultrasonic probe, safe for almost all industries.
    2.
    3. Different size and shapes of ultrasonic probes for selection
    4.
    5. Working with digital generator, automatic frequency searching and tracking.
    6.
    7. With automatic alarm protection, easy to operate.
    8.
    9. Power adjustable from 1% to 99%.
    10.
    11. Stable output amplitude, long working hours, radiation area is increased 2.5 times than traditional tools
    12.
    13. Provide consulting services and custom reactor designs.
    14.
    15. Custom sizes available for laboratory and high volume industrial applications.

  1. Comments From Clients:

Payment & Shipping:


Minimum Order Quantity Price(USD) Packaging Details Supply Ability Delivery Port
1 Piece 2100~4900 normal export packaging 50000pcs Shanghai
